Reflective Glass For Modern Architecture: CVD Coating Technology And Glare Reduction

Modern building envelopes demand expansive transparency to visually connect occupants to the outside world. However, strict energy codes and rigid occupant comfort standards render untreated glazing completely unviable today. Architects face a continuous technical tension in facade design. They must balance striking exterior aesthetic uniformity against precise interior thermal control. They also need to adhere to strict daylighting limits. Allowing unlimited sunshine easily creates unsustainable heat loads. It produces blinding interiors and forces mechanical systems into overdrive.

This article explores how specifying the correct chemical vapor deposition (CVD) coatings effectively resolves these complex issues. We will examine how this advanced technology mitigates thermal stress. It ensures exceptional fabrication durability across large commercial projects. You will discover actionable strategies to specify reflective glass for modern architecture. This approach guarantees verifiable performance returns on complex facade installations.

Key Takeaways

• Durability dictates yield: Hard-coated CVD glass offers superior scratch resistance and shelf-life during fabrication compared to offline soft coatings, reducing project waste and lead times.

• Metric-driven selection: Evaluating solar reflective glazing requires balancing Visible Light Transmittance (VLT) against the Solar Heat Gain Coefficient (SHGC) to meet specific LEED/BREEAM compliance criteria.

• Aesthetic risk mitigation: Specifying color-stable reflective glass minimizes visual discrepancies between vision and spandrel panels across large building elevations.

• Holistic cost evaluation: Upfront coating costs must be weighed against long-term HVAC load reductions and the elimination of mechanical interior shading systems.

The Business Case: Framing Success Criteria for Solar Reflective Glazing

Uncontrolled solar ingress creates significant building performance issues. High peak-cooling loads stress mechanical systems heavily during summer months. Interior glare severely impacts occupant productivity. Tenants often avoid bright perimeter zones entirely. This directly reduces the overall value of net leasable areas. Building owners cannot afford dead zones near windows. They require functional, comfortable spaces everywhere.

Evaluating solar reflective glazing requires clear success criteria. Facade selection must deliver tangible operational benefits from day one. You must set strict performance baselines before selecting any glass type. Moving forward blindly often results in failed energy models.

• Measurable reduction in HVAC capital expenditure through lowered cooling demands.

• Strict compliance with local energy performance codes like ASHRAE 90.1 or Title 24.

• Preservation of the intended exterior aesthetic, whether mirroring, tinted, or neutral.

• Maintained indoor visual comfort without relying on heavy mechanical shading.

We must reconsider the traditional role of glare reduction glass. Modern designs transition away from internal manual blinds. They rely on engineered surface reflectance instead. This integrated approach allows functional daylighting to enter the space. Occupants can comfortably read computer screens without squinting. They stay visually connected to the outside environment at all times.

Choosing the correct glazing package fundamentally alters building operations. It reduces reliance on artificial lighting. It cuts down mechanical cooling requirements drastically. You achieve a balanced interior ecosystem naturally. It transforms the facade into an active climate control barrier.

CVD Coated Glass vs. PVD: Assessing Fabrication Realities and Implementation Risks

We define two primary solution categories in the commercial glass industry. Online CVD (Hard Coat) involves a pyrolytic chemical vapor deposition. The manufacturer fuses it to the glass during the actual float process. Offline PVD (Soft Coat) occurs entirely post-production. A separate factory sputter-coats the glass inside a specialized vacuum chamber.

Fabrication realities present distinct implementation risks. CVD coated glass requires far fewer specialized handling precautions. Fabricators do not need to perform edge-deletion before Insulating Glass (IG) unit assembly. The hard coat possesses an effectively unlimited shelf-life in standard storage. Soft coats degrade rapidly if left exposed to ambient humidity.

Hard coats offer exceptional processing flexibility. Fabricators can easily cut them using standard equipment. They can temper, heat-strengthen, or bend them post-coating. This flexibility easily accommodates complex architectural geometries. It prevents massive production bottlenecks at local fabrication facilities. You maintain project momentum without specialized delays.

Lower fabrication failure rates improve overall procurement predictability. Yield loss remains minimal during the cutting and tempering phases. This translates directly to reliable delivery timelines for the job site. It also lowers per-unit replacement expenses if glass breaks during construction. Fabricators replace panels quickly without waiting for custom vacuum runs.

You must evaluate your local supply chain capabilities. Many regions lack advanced PVD sputtering facilities. Choosing a hard coat ensures local glass shops can service the building. They can process replacement units locally decades later. It secures a permanent, reliable maintenance pathway for the property.

Specifying Reflective Coated Glass: Core Evaluation Dimensions

Performance-to-outcome mapping requires precise data evaluation. You must evaluate the Solar Heat Gain Coefficient (SHGC) strictly against peak summer cooling requirements. Lower SHGC values actively block solar heat ingress. This directly shrinks the required size of rooftop chiller units.

Next, evaluate Visible Light Transmittance (VLT). You balance this against daylighting goals and artificial lighting offsets. High VLT reduces the need for electrical lighting during the day. However, excessive VLT introduces severe glare issues. You must strike a careful mathematical balance.

The Light to Solar Gain (LSG) Ratio is crucial here. You calculate it by dividing the VLT by the SHGC. This represents the ultimate efficiency metric. It helps architects shortlist high-performance coatings rapidly. An LSG ratio above 1.5 indicates excellent spectral selectivity.

Analyzing the differential between exterior and interior reflectance is vital. High exterior reflectance creates structural privacy. It achieves the classic, unified "glass box" aesthetic. Low interior reflectance prevents the distracting mirror-effect at night. Occupants can safely look outside after dark without seeing their own reflections.

Thermal stress demands rigorous safety assessments. Reflective coated glass absorbs substantial solar radiation by design. Excessive heat absorption risks sudden thermal fracture. You must determine when panels require specific heat-strengthening. Fully tempered panels may also be necessary to guarantee total structural safety.

Achieving Visual Consistency with the Architectural Reflective Panel

The vision-to-spandrel transition poses a persistent architectural challenge. You must carefully manage the visual shift along the facade. Transparent viewing areas sit directly beside opaque structural areas. Matching them perfectly under varying sky conditions is exceptionally difficult.

How do you specify acceptable color deviation? We rely heavily on exact Delta E metrics. You must establish strict tolerances across large-scale commercial elevations. A Delta E variance under 2.0 remains generally imperceptible. This strict limit prevents the dreaded "checkerboard" effect. A unified facade demands tight color control from the manufacturer.

Distortion management requires early intervention. Tempering an architectural reflective panel introduces mechanical risks. Roller wave distortion alters exterior reflections significantly. Anisotropy causes visible iridescence or "leopard spots" under polarized daylight. You must establish objective QA/QC standards early in the project.

A comprehensive visual mock-up (VMU) sets the true baseline. You construct this before mass production begins. You evaluate the VMU outdoors under actual site conditions. This exposes potential visual flaws early. It allows adjustments to the tempering recipe.

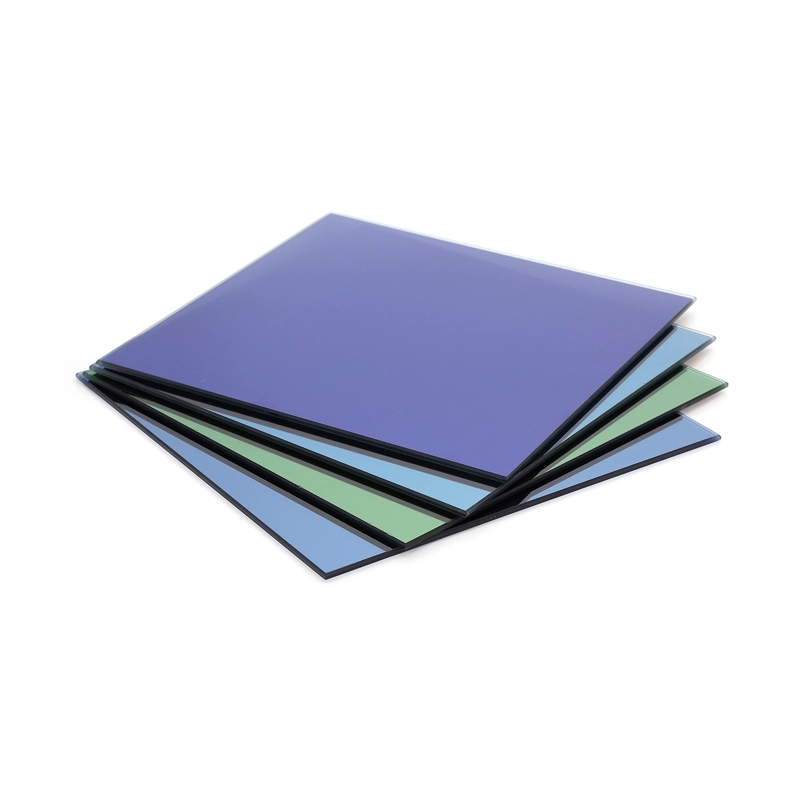

Substrate integration profoundly impacts the final facade hue. Applying coatings on clear glass yields a standard, slightly green look. Low-iron substrates remove the inherent green tint entirely. Body-tinted substrates create rich, customized facade colors like bronze or grey. You must test these glass combinations physically.

Shortlisting Sourcing Partners and Finalizing the Specification

Supply chain scalability limits your options on mega-projects. You must verify the manufacturer’s true production capacity. Phased construction requires uniform batch runs over several years. Inconsistent coating batches ruin building aesthetics completely. Only major float operators can guarantee multi-year batch consistency.

Warranty and compliance auditing mitigates long-term operational risks. Always examine the fine print regarding coating degradation warranties. Pyrolytic coatings generally offer superior longevity due to chemical bonding. You also need third-party verified Environmental Product Declarations (EPDs). These documents definitively prove sustainability claims.

EPDs directly support green building certifications like LEED and BREEAM. They quantify the exact embodied carbon of the glazing system. Specifiers cannot rely on marketing brochures. They require verified, peer-reviewed environmental data. This data satisfies strict municipal building codes.

Specifiers should follow these exact next-step actions:

1. Request comprehensive spectrophotometric data for the exact glass makeup from the manufacturer.

2. Order physical 12"x12" samples to evaluate under specific site lighting conditions.

3. Construct a full-scale thermal and visual mock-up to validate real-world performance metrics.

4. Draft a specification requiring specific Delta E color uniformity tolerances across all batches.

Following these steps ensures highly accurate procurement. It removes dangerous guesswork from the specification process. It protects the architect from post-installation aesthetic disputes. It ensures the building owner receives exactly what they approved.

Conclusion

Specifying reflective glazing represents a major structural and financial decision. It goes far beyond simple aesthetic preferences. The right coating defines the building's operational energy future. It dictates occupant comfort for decades.

Chemical vapor deposition technology provides the most robust fabrication baseline. It guarantees high processing reliability for local glass shops. It delivers exceptional baseline solar control immediately. Hard coats survive harsh job site conditions effortlessly without specialized handling.

We strongly encourage a strict data-first approach. Rely exclusively on project-specific energy modeling. Generic manufacturer claims often fall short in complex real-world applications. Validate your thermal metrics thoroughly. Order physical mock-ups early. Finalize a flawless glazing schedule based entirely on proven physical evidence.

FAQ

Q: Can CVD reflective glass be combined with Low-E coatings in an insulated unit?

A: Yes. Placing a reflective CVD coating on Surface 1 or 2, and a Low-E coating on Surface 3, maximizes both solar control and winter thermal insulation. This dual-coating strategy significantly improves overall building energy efficiency year-round.

Q: How does reflective glass impact nighttime privacy?

A: Reflective glass relies strictly on light variance. At night, when interior lights are on and the exterior is dark, the reflective effect reverses completely. The glass becomes transparent from the outside. Additional interior privacy measures are required for nighttime concealment.

Q: Does hard-coated glass require specialized cleaning protocols?

A: No. Unlike exposed soft coats, pyrolytic CVD coatings are permanently chemically bonded to the glass surface. They resist scratching exceptionally well. Maintenance crews can clean them using standard commercial facade cleaning methods without any risk of coating degradation.

Q: How do we match an existing architectural reflective panel for a building extension?

A: Exact matching requires identifying the original manufacturer, substrate tint, and specific coating process. Next, you must review new spectrophotometer readings. Legacy coatings may have shifted slightly due to changes in modern production standards. Always demand physical site mock-ups.
