Architects and interior specifiers consistently wrestle with balancing natural daylighting against spatial confidentiality. Relying on standard monolithic glass fails to deliver the visual anonymity required for medical clinics, legal offices, or focused work environments. Building solid drywall partitions fixes the isolation issue but traps occupants in dark, disconnected footprints that artificially shrink usable floor space. Many facility managers attempt retrofits using applied vinyl films. These films invariably peel, bubble, and degrade under heavy commercial cleaning cycles. Switchable smart glass provides active control, yet it demands complex electrical infrastructure and ongoing component maintenance. Passive structural solutions bypass these operational hurdles entirely. Specifying pattern glass for privacy partitions establishes a permanent approach that physically manipulates light refraction. This guide details the exact surface textures, light transmission data, safety compliance codes, edge finishing techniques, and installation realities needed to execute successful architectural glazing.
Privacy vs. Transmission Correlation: Obscurity levels are directly dictated by pattern depth and geometric frequency; higher visual privacy typically reduces direct Visible Light Transmission (VLT) but increases diffuse daylighting.
Pattern-Specific Performance: Linear patterns offer directional distortion ideal for semi-private zones, while dense, multi-directional textures provide high-level obscurity suitable for clinical or confidential spaces.
Safety Code Mandates: Partition applications require safety glass. Specifiers must verify that chosen patterns can be fully tempered or laminated without compromising structural integrity or pattern distortion.
Frameless Aesthetic Requirements: The integration of decorative partition glass in frameless or structural glazing requires precise edge treatments (e.g., flat polish or beveling) that interact uniquely with varying textures.
Maintenance Realities: The physical topography of pattern textured glass requires specific orientation during installation (smooth side facing high-touch zones) to mitigate cleaning overhead and dust accumulation.
Defining architectural privacy requires separating visual distortion from total light blockage. Standard clear float glass allows specular transmission. Light waves pass straight through the uniform substrate, retaining sharp image resolution on the opposite side. When you need spatial confidentiality, maintaining high daylight penetration while destroying visual clarity becomes the primary objective. Specifying pattern textured glass solves this architectural challenge by introducing physical topography to the glass surface during the manufacturing stage. Molten glass passes through heavy steel rollers at temperatures exceeding 1050°C. These rollers press specific geometric ridges, valleys, or stipples directly into the semi-liquid ribbon.
As incoming light hits these embossed ridges in the finished product, the varying angles alter the index of refraction. This forces the light waves to scatter wildly instead of traveling in a straight line. This scattering mechanism converts direct, harsh light into soft, diffuse illumination. Diffusion effectively mitigates solar glare without plunging interior spaces into darkness. The physical depth and repetition rate of the embossed pattern dictate the severity of the light fracture. A shallow, wide pattern bends light gently, resulting in mild blurring. A deep, tightly grouped geometric pattern fractures the light aggressively in multiple directions. This completely destroys the visual resolution of people and objects behind the partition.
To standardize specification across different projects, the glazing industry relies on a 1 to 5 obscurity scale. This framework normalizes the varying proprietary ratings published by different foundries. Specifiers use this scale to match the correct structural pattern to the privacy requirements of the room.
Obscurity Level | Visual Effect on Transmission | Ideal Architectural Application |
|---|---|---|
Level 1 - 2 | Mild distortion. Silhouettes, movements, and large details remain easily recognizable. | Display cabinets, open-office transitional dividers, decorative transoms. |
Level 3 | Moderate obscurity. Proximity and general shapes are identifiable; fine details vanish. | Restaurant booth dividers, semi-private office fronts, corridor walls. |
Level 4 | High privacy. Figures blur into vague, unrecognizable color patches. | Restroom vestibules, street-facing ground partitions, patient triage zones. |
Level 5 | Total shape dissolution. Only ambient color and light mapping transmit through. | High-security meeting rooms, medical examination rooms, shower enclosures. |
Selecting the correct profile determines both the aesthetic narrative and the functional success of the installation. decorative partition glass falls into three distinct structural categories. Each category manipulates light transmission differently and requires specific framing considerations.

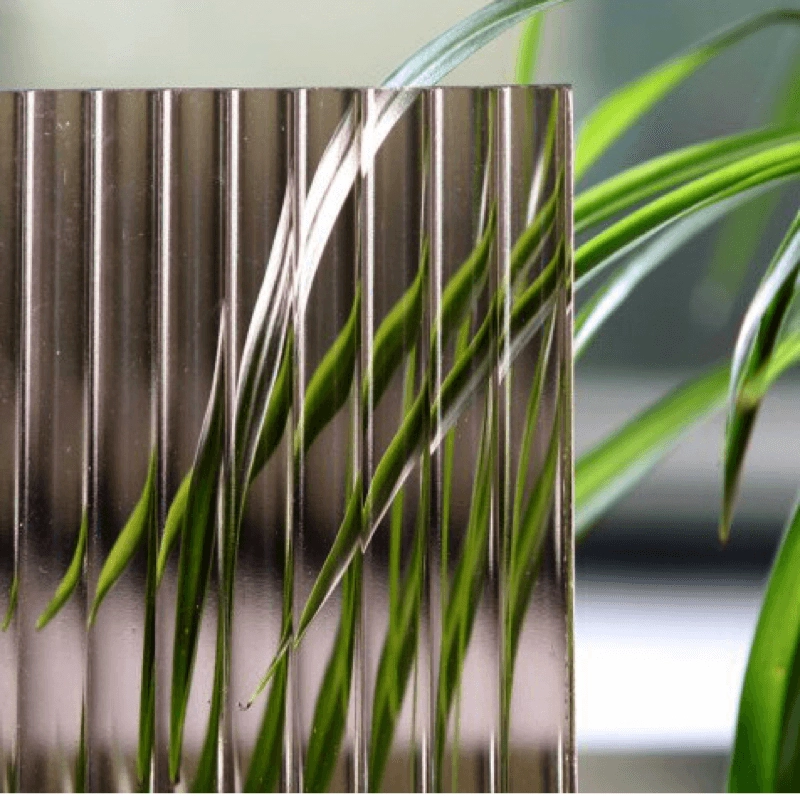

Linear patterns feature continuous vertical or horizontal parallel ribbing. The manufacturing process rolls distinct flutes into the hot glass ribbon, creating a corrugated physical profile. This texture distorts light strictly along one axis. If the flutes run vertically, objects behind the glass stretch and blur horizontally while retaining some vertical continuity.
This directional distortion yields a Level 3 privacy rating. It obscures fine details but allows occupants to perceive movement and proximity. You specify linear profiles for office fronts, restaurant dividers, and transitional corridors where maximizing light sharing takes precedence over total anonymity. The vertical lines naturally draw the eye upward, artificially enhancing the perceived ceiling height of the space. Installers must match the verticality of the flutes perfectly across adjacent butt-glazed panels to prevent jarring visual misalignment.
Geometric profiles rely on grid-based, multi-faceted pyramidal structures. Instead of bending light along a single plane, the faceted pyramids fracture incoming light waves in four or more directions simultaneously. This aggressive, multi-axis scattering destroys visual continuity rapidly within a few inches of the glass surface.
Geometric textures yield high privacy levels, typically ranking at Level 4 or Level 5. You deploy these profiles in environments demanding strict visual control. Ground-floor street-facing partitions, high-security meeting rooms, and restroom vestibules benefit heavily from this distortion. The faceted nature of the glass catches and reflects interior ambient lighting, adding dynamic texture to flat corridors. These deep profiles often require specialized, thicker rubber glazing gaskets to maintain compression in aluminum U-channels.
Organic profiles abandon rigid geometry in favor of randomized, natural textures. Designers often integrate Moru diamond Nashiji glass based on the exact privacy threshold required by the floor plan. Nashiji features a dense, stippled, pear-like micro-texture that scatters light evenly across the entire surface. Rain profiles mimic the vertical streaking of water droplets, offering a softer alternative to rigid mechanical flutes.
These dispersed textures provide a solid Level 4 privacy yield. They deliver soft, uniform light diffusion without introducing harsh, rigid lines that conflict with other interior architectural elements. Healthcare partitions, residential shower enclosures, and wellness center dividers rely on organic profiles. The randomized scattering breaks up distinct shapes perfectly while maintaining a calm, highly diffused daylighting environment. The shallower depth of organic textures makes them slightly easier to temper and edge-polish than aggressive geometric grids.
Beyond visual obscurity, a translucent patterned panel must perform structurally and environmentally. Specifiers evaluate how the selected texture impacts overall building metrics, from daylighting targets to acoustic isolation.
Visible Light Transmission (VLT) serves as the primary metric for daylighting calculations. VLT measures the percentage of the visible light spectrum that successfully passes through the glazing. Standard clear float glass hovers around 90% VLT. When a foundry rolls a texture into the surface, the physical ridges increase the glass thickness locally and scatter light, naturally reducing raw transmission. Most standard clear patterned profiles maintain a VLT between 70% and 85%. Deeply embossed profiles drop toward the lower end of this range, while shallow organic textures retain higher light penetration.
The inherent iron content of the glass substrate heavily influences the final partition aesthetic. Standard clear glass contains ferric oxide, which imparts a distinct green hue. This green tint becomes highly pronounced at the polished edges and magnifies within the dense ridges of heavily textured patterns. When color neutrality dictates the design, specify low-iron glass. Low-iron substrates remove the green cast, providing ultra-clear light transmission. This upgrade proves non-negotiable in retail environments, galleries, or corporate spaces where brand colors must transmit through the partition without distortion.
Single-pane textured glass offers limited acoustic isolation. A standard 6mm monolithic patterned pane yields a Sound Transmission Class (STC) rating around 31. This blocks conversational murmurs but fails to isolate loud mechanical noise or shouting. For private offices requiring acoustic confidentiality, integrate the privacy figured glass into a double-glazed Insulated Glass Unit (IGU). By placing the textured lite on the interior cavity side of the sealed unit, you combine the high STC rating of a double-pane system (often exceeding 38) with the visual obscurity of the pattern.
Highly diffuse patterned glass directly supports sustainable building initiatives. By converting direct solar glare into scattered daylight, these panels push usable illumination deeper into interior floor plates. This natural diffusion reduces the reliance on artificial overhead lighting. Proper specification of diffused glazing assists commercial projects in achieving LEED v4 Daylighting and Quality Views credits, permanently improving the overall energy efficiency of the architectural envelope.
Interior partitions face uncompromising building code mandates. Installing standard annealed glass in high-traffic or door-adjacent zones violates safety regulations due to the risk of catastrophic shard breakage. The glass must undergo strict processing to achieve safety ratings.
Thermal tempering heats the glass to over 600°C before rapidly quenching it with forced air. This creates high surface compression, rendering the glass structurally robust and ensuring it shatters into safe, blunt pebbles upon failure. Heavily embossed privacy glass presents unique tempering challenges. Deep grooves create severe thickness variations across a single pane. During the rapid cooling phase, thin valleys cool faster than thick ridges. This uneven thermal stress dictates fabrication limits.
Verify Pattern Depth: Check the peak-to-valley variance. Variations exceeding 2mm often cause the panel to warp or induce roller wave distortion inside the tempering furnace.
Confirm Maximum Dimensions: Deep textures limit the maximum allowable square footage for a single pane. Furnaces restrict deeply fluted glass sizes to prevent explosive failure during the quench.
Assess Edge Grinding Allowances: CNC edge grinders encounter uneven resistance as the wheel moves across ridges and valleys. Glaziers must reduce feed rates and utilize specialized polishing wheels to prevent micro-chipping along exposed frameless edges.
Calculate Span Deflection: Standard architectural patterned glass ranges from 4mm to 10mm. A 6mm panel deflects under lateral load if unsupported. Floor-to-ceiling spans exceeding 10 feet require 10mm thickness or fully captured continuous framing channels.
When specific patterns cannot survive the tempering furnace, lamination serves as the alternative safety method. Lamination bonds two lites of glass together using a Polyvinyl Butyral (PVB) or Ethylene-Vinyl Acetate (EVA) interlayer. If broken, the plastic core holds the shards in place. Laminated textured glass requires exact fabrication orientation. If you place the textured face inward against the interlayer, the melted resin fills the pattern's crevices. Because the resin and glass share similar refractive indices, filling the valleys chemically "erases" the visual texture and ruins the privacy level. Fabricators must always laminate with the textured faces pointing outward.
Executing a successful partition project means anticipating installation friction points. The physical reality of textured surfaces demands operational adjustments that differ significantly from handling standard smooth glazing.
The orientation of the panel dictates its long-term maintenance footprint. The embossed side of the glass acts as a physical dust trap. Deep ridges collect airborne particulate, grease, and moisture over time. Installing the textured face toward a high-traffic hallway, a kitchen, or a wet zone guarantees heavy cleaning burdens. Contractors must always orient the smooth face outward toward the primary soil source. Position the textured face inside the office, facing the cavity of an IGU, or toward the least-trafficked zone to eliminate daily cleaning friction.
Hardware compatibility introduces another massive failure point. Frameless partition systems rely on compression gaskets and dry-glaze U-channels to secure the glass. Standard EPDM rubber gaskets struggle to maintain consistent clamping force against deeply fluted or geometric surfaces. The reduced surface contact area lowers the friction coefficient, causing the panel to slip or shift inside the track. Installers often discard dry-glaze gaskets entirely, transitioning to wet-glaze structural silicones. Silicone securely fills the voids in the texture, ensuring the partition remains permanently anchored.
Architects frequently weigh cast pattern glass against alternative privacy treatments. Each alternative carries strict operational trade-offs. Applied vinyl privacy films apply quickly to existing smooth glass but suffer from inherent material weaknesses. Under UV exposure or heavy commercial cleaning, film edges peel, and the center field develops air bubbles. Films require periodic stripping and reapplication, disrupting space utilization.
Acid-etched and sandblasted glass offer incredibly smooth, highly diffuse finishes. The abrasive process opens the microscopic pores of the glass substrate. Unsealed etched surfaces absorb natural skin oils rapidly, leaving permanent, dark fingerprints that standard glass cleaners cannot remove. Rolled patterns resist oil absorption naturally due to their fired surface. Switchable PDLC glass provides active privacy, transitioning from clear to opaque instantly. This capability demands low-voltage wiring, specialized framing to conceal transformers, and ongoing electrical maintenance. Passive rolled patterns deliver permanent, failure-proof obscurity.
Pattern glass provides an unmatched structural solution for interior partitions. By physically manipulating light refraction, it solves the dual requirement of maximizing daylight penetration while enforcing spatial confidentiality. Success demands ensuring the specific texture aligns accurately with the room's obscurity targets, edge fabrication limits, and safety code mandates. Avoiding installation failures requires rigorous attention to panel orientation and framing compatibility.
Execute the following steps to finalize your glazing specification:
Define the required obscurity level on the 1-5 scale to eliminate incompatible texture categories immediately.
Audit the framing hardware to confirm whether you need wet-glaze structural silicone to accommodate deep texture variances.
Calculate the interior acoustic requirements to determine if you need single monolithic panes or double-glazed insulated units.
Order physical 12-inch by 12-inch glass samples to conduct on-site lighting mock-ups under the actual floor plan's daylight conditions.
Require written confirmation from your glazier detailing maximum tempering dimensions for your exact chosen pattern to prevent late-stage design changes.
A: Diamond grids and heavy Nashiji stippling achieve Level 5 obscurity. These multi-directional textures fracture incoming light aggressively, dissolving object boundaries completely. You only see ambient color mapping behind the partition. If you require absolute visual blocking while maintaining natural light transmission, specify geometric prismatic profiles rather than directional linear flutes.
A: Yes, fabrication facilities temper most standard rolled patterns. However, deep-groove designs experience uneven thermal stress in the quenching furnace. This uneven cooling limits the maximum thickness and panel size available for fully tempered safety glass. Always confirm specific dimension limits with your glazier before finalizing tall partition span designs.
A: Rolled patterns manipulate light through physical structural refraction. Frosting relies on surface abrasion or chemical etching to create opacity. Textured options resist fingerprints better, maintain higher visible light transmission, and provide dynamic visual depth. Frosted panels diffuse light heavily and require specialized sealants to prevent skin oil absorption.
A: It scatters light rather than blocking it. Standard clear patterns retain 70% to 85% Visible Light Transmission (VLT). The textured surface converts harsh direct sunlight into soft diffuse daylight. This eliminates glare on computer screens while pushing usable natural light deeper into interior corridors and central meeting zones.
A: You can integrate textured glass into Insulated Glass Units (IGUs) easily. Position the patterned lite on the interior or exterior side, ensuring the textured face points into the sealed airspace. This orientation keeps both exterior-facing surfaces perfectly smooth for effortless cleaning while combining acoustic performance with visual privacy.
A: Always position the smooth side facing the highest-traffic or dirtiest environment. Clean the smooth face with standard squeegees. For the textured side, use soft bristle brushes or high-pile microfiber cloths to lift dust directly from the crevices. Never use abrasive pads or heavy chemical solvents that degrade adjacent partition seals.
A: Yes, but hardware specification requires strict attention. Deep textures drastically reduce the friction coefficient for standard clamp gaskets. Frameless applications demand flat-edge grinding and specialized dry-glaze U-channels. Glaziers rely on structural adhesives or notch-cut hardware configurations to secure highly embossed panels safely without causing compression fractures.
