Modern architectural design constantly pushes the boundaries of form and function. Architects frequently envision sweeping, complex shapes to define modern building facades. Balancing these bold aesthetic visions against strict structural safety codes creates a core tension. Monolithic or basic tempered panels often fail under rigorous infrastructure demands. They cannot withstand immense wind pressures while curving gracefully around a building's perimeter. You need a robust solution for high-stakes load-bearing applications. Curved laminated glass steps directly into this gap. It merges unyielding structural integrity with elegant, fluid design. This article provides an objective breakdown of current bending methodologies and interlayer performance. We will examine the specific engineering criteria you need to procure custom components. You will discover how to evaluate risks and specify materials correctly. Understanding these variables ensures your architectural features remain safe, durable, and visually stunning.
Process dictates performance: The specific bending method (hot bending, cold bending, or tempering) directly impacts the maximum allowable radius, optical clarity, and structural limits of the final panel.
Interlayer selection is critical: SGP (SentryGlas Plus) significantly outperforms standard PVB in structural integrity, edge stability, and post-breakage behavior for curved applications.
Risk mitigation requires strict tolerancing: Evaluating optical distortion (roller waves) and delamination risks early in the design phase prevents costly downstream failures.
Specification requires holistic data: Successful procurement demands exact geometric data, wind load calculations, and hardware compatibility pre-verification.
Many projects face a distinct and complex engineering challenge. Architects specify design feature glass to create striking landmark aesthetics. They want sweeping lines, transparent corners, and seamless transitions. Engineers, however, must solve practical physics problems. They calculate heavy wind loads, continuous seismic drift, and severe impact resistance. True project success requires aligning these two distinct perspectives from the beginning.
Project teams must categorize solutions correctly. Planners often confuse non-structural decorative elements with load-bearing materials. Decorative panels serve purely visual functions. They typically sit inside lobbies or act as simple partitions. In contrast, load-bearing curved architectural glazing carries immense physical responsibility. You will find these robust components in exterior curtain walls, high-rise balustrades, and expansive overhead canopies. They must support their own weight while resisting severe environmental forces.
We must define clear success criteria early in the design phase. A successful installation achieves a seamless visual curve without obvious distortion. It must also maintain verifiable post-breakage retention. If a panel breaks, it cannot fall and injure pedestrians. Passing rigorous impact testing remains a strictly non-negotiable requirement for modern structural applications.

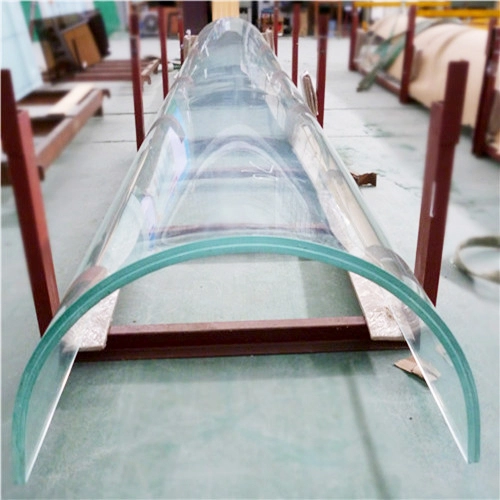

The chosen manufacturing method strictly dictates the final performance of the material. Each bending process offers unique capabilities and distinct physical constraints.
This method relies on intense heat and specialized metallic forms. Manufacturers heat the flat material over a custom mold inside a kiln. It slowly slumps into the desired shape through gravity. Gradual cooling, known as annealing, immediately follows. Finally, technicians laminate the individual plies together. Hot bending works beautifully for complex, multi-radius shapes. It achieves exceptionally tight curves easily. However, the annealed product yields significantly lower structural strength than tempered alternatives. You must account for this lower strength when calculating wind loads.
This automated process combines shaping and strengthening simultaneously. Machinery bends the material inside a furnace during a rapid cooling sequence. This rapid air quenching produces exceptional mechanical strength. It greatly improves thermal stress resistance. Engineers prefer this method for high-load exterior environments. However, manufacturers restrict this specific method primarily to cylindrical, single-radius curves. Complex organic shapes remain impossible with standard tempering rollers.
Installers force flat laminated panels into a curved frame directly on-site. It requires significant mechanical force during installation. The approach introduces permanent out-of-plane stress into the panel. Strict radius limits apply here to prevent failure. Exceeding these engineering limits risks spontaneous breakage.
The following chart summarizes the core differences between these manufacturing methodologies:
Bending Method | Ideal Geometry | Structural Strength | Primary Risk Factor |
|---|---|---|---|
Hot Bending (Annealed) | Multi-radius, exceptionally tight curves | Low | Reduced localized load capacity |
Heat-Treated (Tempered) | Single-radius cylindrical curves | High | Optical roller wave distortion |
Cold Bending | Gentle, sweeping curves | Medium | Permanent out-of-plane stress |
Best Practice: Always consult framing engineers before approving cold bending. Ensure the aluminum extrusions can handle the constant spring-back force.
Common Mistake: Specifying heat-treated bending for tight, complex multi-radius shapes. This often results in project delays when fabricators reject the specifications.
The polymer interlayer acts as the structural heart of the assembly. Choosing the correct polymer determines how the entire panel behaves under stress.
Standard PVB serves well in highly specific environments. It proves sufficient for basic interior applications. Acoustic dampening often takes priority over structural rigidity indoors. PVB effectively blocks ambient sound transmission. However, it presents notable engineering limitations outside. Exposed weather conditions make it vulnerable to edge delamination. Moisture slowly penetrates the exposed edges over time. Furthermore, standard PVB provides minimal structural coupling. The two outer plies behave almost independently under heavy wind loads.
Engineers demand much more robust solutions for exterior applications. SGP curved laminated structures directly answer this critical need. The SGP interlayer delivers a massive structural advantage. It stands up to 100 times stiffer than standard PVB. It tests 5 times stronger in sheer force scenarios. This immense rigidity allows designers to specify a thinner overall bent glass panel. You maintain exceptionally high load capacity while reducing structural weight on the building frame.
Post-breakage performance defines life-safety compliance. Overhead glazing and high-rise balustrades require absolute fail-safes. SGP holds the bent shape securely after an impact. It bears substantial weight even if both rigid plies shatter entirely. This characteristic aligns perfectly with advanced building envelope codes. Safety inspectors frequently require SGP to meet strict hurricane and blast certifications in coastal regions.
Producing curved forms introduces inherent manufacturing variables. Risk assessment requires strict attention to minor details.
Heating and shaping naturally alter optics. Bending and tempering processes create inherent visual defects. Roller waves appear as slight, continuous ripples across the surface. Anisotropy causes iridescent, rainbow-like patterns under polarized light. You must address these visual anomalies proactively. Set acceptable limits for optical clarity directly in your specification documents. Rely on established industry standards like ASTM and EN to define these thresholds objectively. Visual inspections should occur at specific distances and lighting angles.
Curved geometries constantly battle against fundamental physics. The laminated plies naturally want to spring back to a completely flat state. This tendency generates continuous shear forces at the curved edges. Delamination can easily occur if manufacturers ignore these forces. You mitigate this serious risk through precise autoclave processing. Strict environmental controls during manufacturing remain absolutely essential. The temperature and pressure must bond the SGP completely.
Materials behave differently in reality than on digital blueprints. Discrepancies constantly exist between manufactured material tolerances and structural framing tolerances. Steel and aluminum frames shift slightly during installation. The rigid panels do not flex to accommodate these shifts. Stacking these minute deviations causes major alignment issues.
Requirement: You must emphasize the absolute necessity of 3D scanning. Mandate physical mock-ups (PMU) before authorizing full-scale production. A physical trial fit reveals tolerance clashes immediately.
Best Practice: Require the glass fabricator and the metal framer to share CNC files.
Common Mistake: Approving mass production based solely on theoretical architectural drawings without a localized mock-up.
Successful procurement demands rigorous and objective vetting. You cannot rely on assumptions when ordering custom structural materials.
First, verify the manufacturer's maximum autoclave dimensions. The autoclave acts as a massive pressure cooker. Its internal size strictly determines the largest single panel you can order. If your design requires a six-meter span, but the autoclave only holds five meters, the design fails. Second, request empirical testing data. Ask for laboratory reports on similar radii and interlayer combinations. Proof of past success prevents future installation failures.
Your bid packages must include highly specific technical data. Use this precise checklist to ensure accuracy:
Exact geometric definitions: Provide the exact radius, arc length, chord, and tangent points. Never assume a simple radius measurement is sufficient.
Defined environmental loads: Specify localized wind pressure, snow accumulation, and thermal stress calculations based on the site location.
Specified edge treatments: Clarify if edges need polishing, stepping, or standard seaming. Note whether the metal framing captures the edge completely or leaves it exposed to the elements.
Do not finalize complex designs in a vacuum. Initiate a design-assist phase early in the project timeline. Partner directly with a certified fabricator to review all structural calculations. Produce a visual and performance mock-up to confirm aesthetic and structural alignment. This collaborative step saves significant time and frustration during final construction.
Specifying complex geometries is an exercise in balancing geometric ambition with unforgiving manufacturing physics. A successful project requires precise methodology, realistic tolerances, and rigorous quality control. You must prioritize structural interlayers like SGP for critical load-bearing applications to ensure public safety.
Consider these action-oriented next steps as you proceed:
Partner strictly with technically transparent fabricators who willingly share their raw testing data.
Demand a physical mock-up to identify tolerance stacking issues before mass production begins.
Validate all localized wind and snow loads before selecting a final bending process.
Review autoclave size limits during the initial architectural drafting phase to prevent redesigns.
A: Minimum radius depends on the glass thickness and bending method. Heat-tempered bending generally requires a larger radius (often around 1000mm+), while annealed hot bending can achieve much tighter radii.
A: Yes. Cold bending introduces continuous out-of-plane stress. If not calculated correctly against the interlayer's shear relaxation properties, it can lead to long-term delamination or spontaneous failure.
A: SGP is highly resistant to moisture ingress (preventing edge delamination) and provides superior structural coupling, allowing the glass plies to act compositely against wind loads.
A: Tolerances are managed via strict adherence to standards like ASTM C1464, utilization of precision CNC molds, and mandatory trial fits in bespoke framing systems before mass production.
